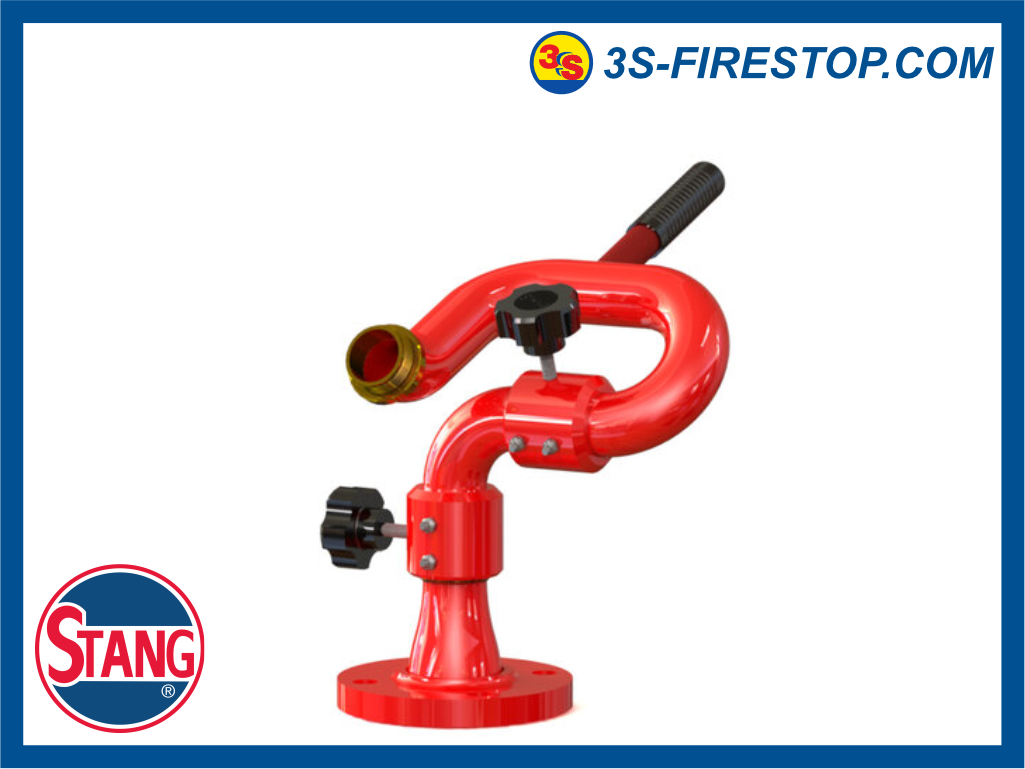

STANG Model 925 - Station Monitors

The 925 Station Monitor is able to throw a stream of water over 200 ft and it will securily managed from 150 to 1,000 GPM with as operating pressure as little as 50 PSI or as much as 150 PSI (depend of the stream nozzle type use). Inlet connection can be selected when ordering from 2-1/2" - 3" - 4" - 6" ANSI 150# RF Flange -or- 3" - 4" - 6" ANSI 150# FF Flange. The handle bar can be choosen "tiller bar" or "C-bar".

The 925 has swivel that rotates a full 360-degrees and is very well balanced. The lower ell makes a 90° turn into the upper ell, which incorporates the vertical swivel and Stang’s proprietary curved water way. The vertical swivel has a +/- range of 85°/45° and is designed to spin clean while under pressure even with the weight of a heavy brass nozzle.

The locking mechanism can be choosen "blade lock" or "lock knob". There are two choices for the waterway body, seamless carbon steel sch 40 pipe or stainless steel.
