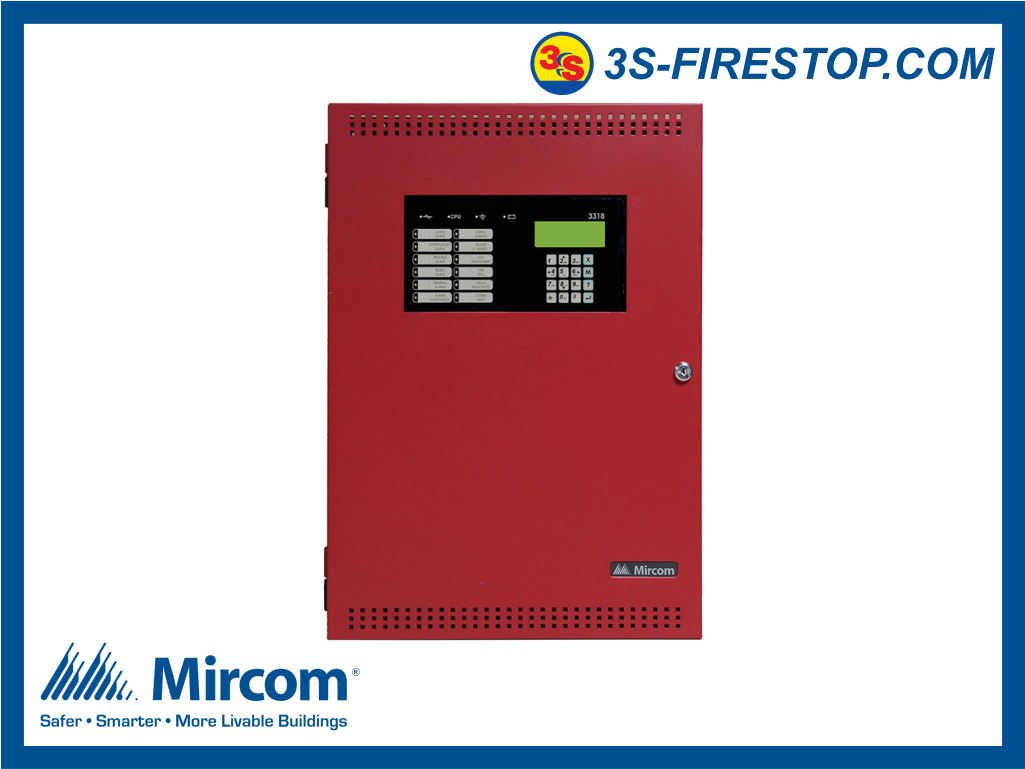

Single-Loop Addressable Panel - FX-3318

MIRCOM FX-3318 Addressable Fire Alarm Control Panel is UL 864 REV 10, COA and CSFM listed. For those jobs that require a solution that is "low cost" for small to medium facilities, the FX-3318 single loop intelligent panel is the solution. The FX-3318 provides 1 intelligent signaling Line Circuit (SLC) that supports the Advanced Communication Protocol (AP) protocol (supporting AP devices up to 318 devices) and CLIP protocol (supporting legacy CLIP devices up to 198 devices).

Compatible CLIP addr devices : MIX-M501 , MIX-M502M , MIX-M500M , MIX-M500DM, MIX-M500S, MIX-M500R, MIX-2251B, MIX-2251TB, MIX- 2251TMB, MIX-5251B, MIX-5251RB, MIX-5251H and other CLIP devices.

Compatible AP devices: MIX-M501MAP, MIX-M502MAP, MIX-M500MAP, MIX-M500DMAP, MIX-M500SAP, MIX-M500RAP, MIX-2351APNEW, MIX - 2351TAPNEW, MIX-2351TIRAPNEW, MIX-5351-APNEW,MIX-5351HAPNEW, MIX- 5351RAPNEW , M500M-4-20 , and other newest AP devices.

BAT-12V12A (12 Ah) and BAT-12V18A (18 Ah) will fit into the FX-3318 enclosure. To house BAT-12V26A (26 AH) batteries a BC-160/R Battery Cabinet is required.
